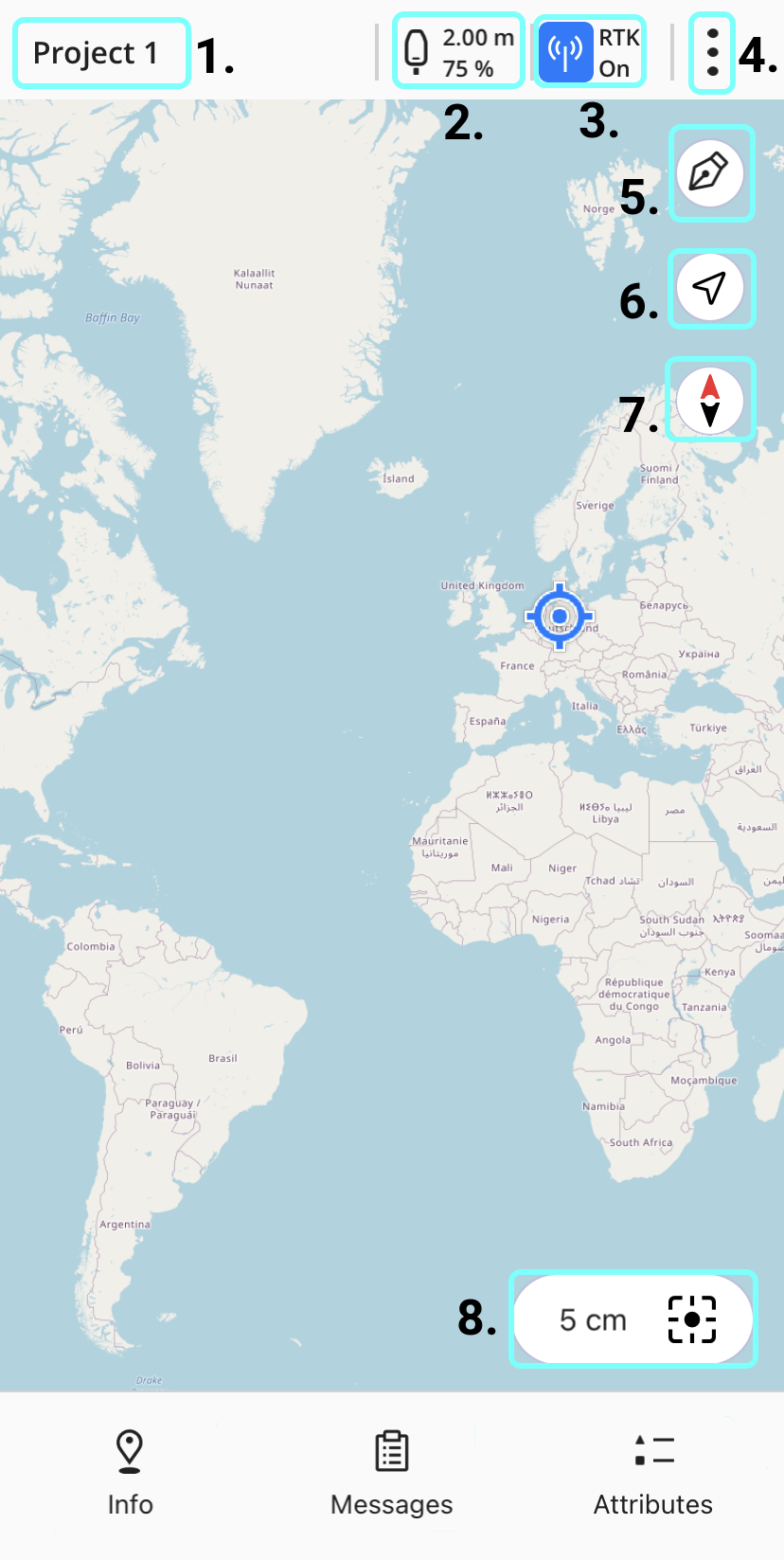

Main View

The main view of Zeno Mobile One displays a map with your current GPS location, along with several buttons and settings.

To navigate around the background map:

Pan: Touch and drag one finger across the screen.

Zoom in: Place two fingers on the screen and spread them apart.

Zoom out: Place two fingers on the screen and pinch them together.

Rotate: Place two fingers on the screen and turn them in the direction you want to rotate the map.

1. Project

The name of the active project is always shown in the top left of the main view. Tapping on the project name takes you to the Edit Project menu.

2. Antenna

The antenna icon indicates which antenna you are connected to, along with the antenna's current height and battery level.

• Tapping on the antenna icon takes you to the GPS settings page.

• If the Zeno Mobile One units settings as set to Feet, the antenna height will be displayed in decimal feet.

• The antenna icon itself changes depending on which antenna you are connected to and how it is setup

Mobile device antenna

GG04 plus

FLX100 plus
Pole (tilt inactive)	Upright	Handheld	Tilt active

3. RTK

The RTK button shows the current state of your RTK, SBAS or PPP connection. You can tap the button stop or start the connection to the RTK.

Depending on the current state of your RTK connection, the RTK button has several different states:

RTK
RTK is selected as the correction profile but there is either no GPS position available or no external GPS is connected.	RTK connected to unsecure NTRIP server.	RTK connected to secured NTRIP server.	RTK is the selected correction profile but turned off.
PPP
PPP is selected as the correction profile but there is either no GPS position available or no external GPS is connected.	PPP connected.	PPP is the selected correction profile but turned off.
SBAS
SBAS is selected as the correction profile but there is either no GPS position available or no external GPS is connected.	SBAS connected.	SBAS is the selected correction profile but turned off.

4. Settings

The settings menu, located on the right side of the top menu bar, gives you access to Projects, Layers, and Settings.

5. Digitise

To manually digitise features on the map instead of using GPS measurements, activate the digitise button in the top-right corner and draw features with your fingers on the touchscreen.

When active, the digitise button turns blue and the GPS measurement button disables. To take GPS measurements, deactivate digitise mode to enable the measure button.

6. Zoom to location

Tapping the zoom to location button centers the map on your GPS current position.

Tapping the north arrow rotates the map so that North is aligned at the top of the screen.

7. North arrow

8. Measure button

The measure button shows your current estimated horizontal GPS accuracy. To record a GPS measurement at your location, tap the button.

Depending on the current state of your GPS antenna and which settings or functions are being used, the measure button has several different states:

	No antenna connected.
	Active GPS position.
	Tilt on but uninitialised.
	Tilt on partially initialised.

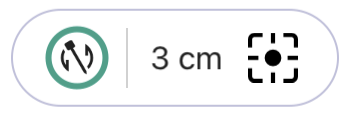

	Tilt on and fully initialised.
	Streaming on. Tap the button to start streaming.
	Streaming active. Tap the button to stop streaming.
	GPS position quality is outside the set position limits.

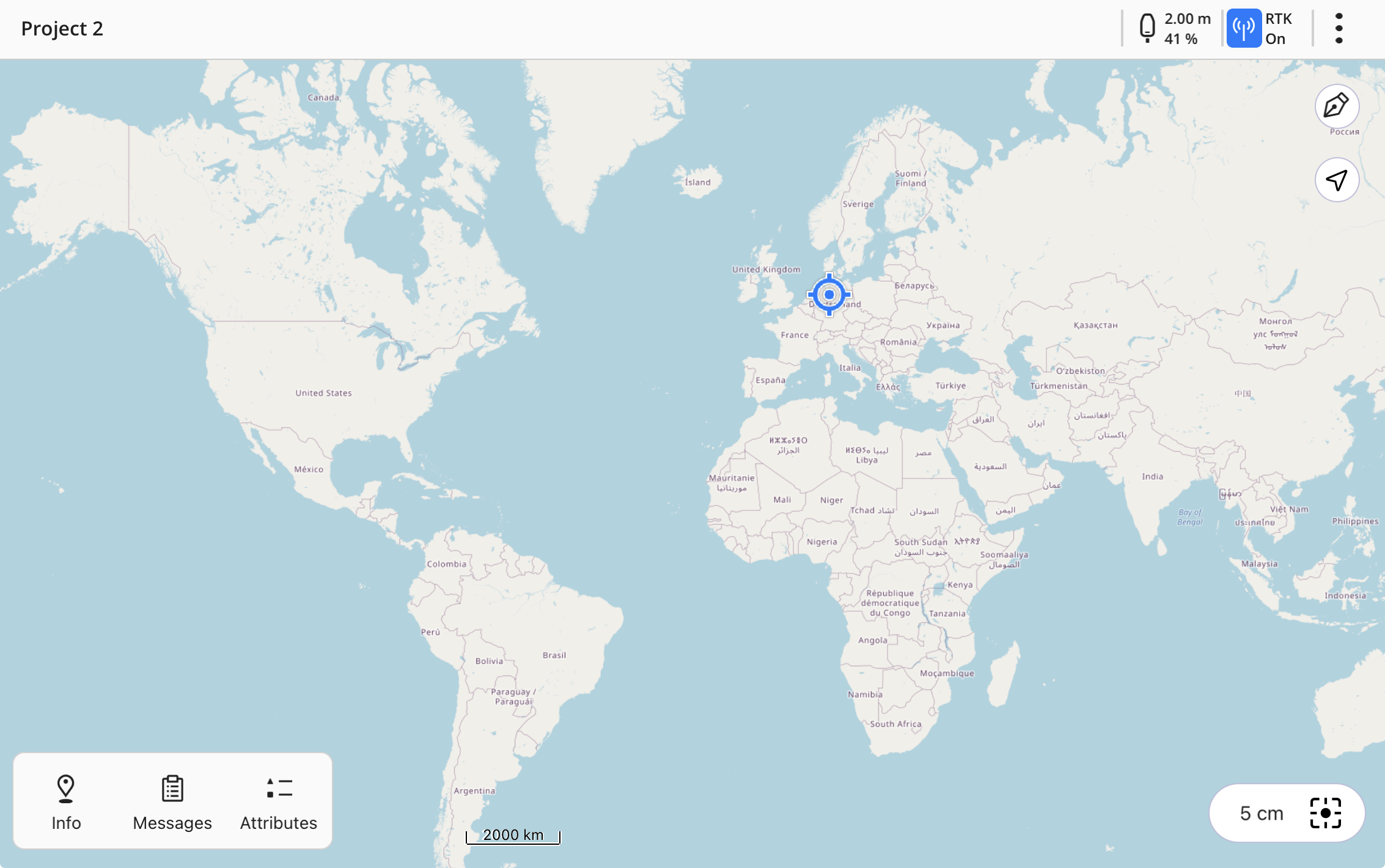

Landscape mode

On a tablet, Zeno Mobile One automatically switches the main view to landscape mode when you rotate the device. The menus and buttons remain in the same positions.
